Linkage Arm Replacement

Step by step instructions

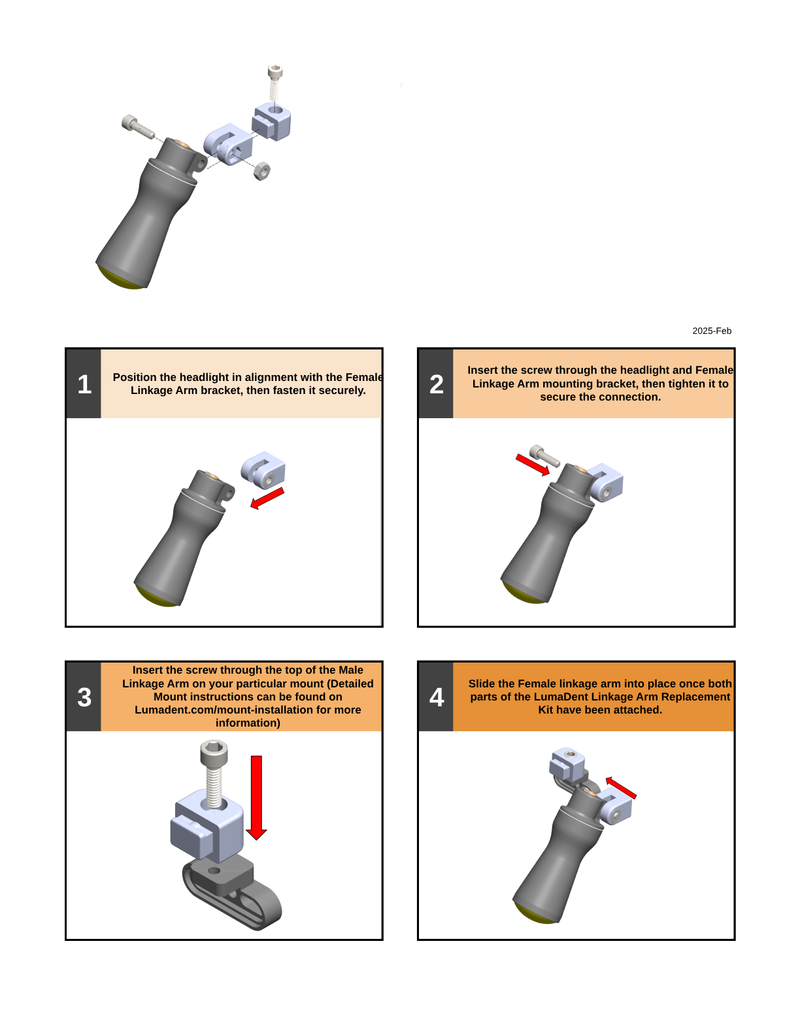

  • Slide female linkage arm off of male half.
  • Remove the screw on the female linkage arm to detach it from the light.
  • Place new female linkage arm onto the light housing.
  • Tighten screw back down to attach female linkage arm back to the light.
  • Remove your mount from your loupes.
  • Separate male linkage arm from mount by backing out the screw.
  • Re-attach by tightening the screw back down.
  • Re-attach your mount to your loupes.
  • Slide the linkage arms back together.

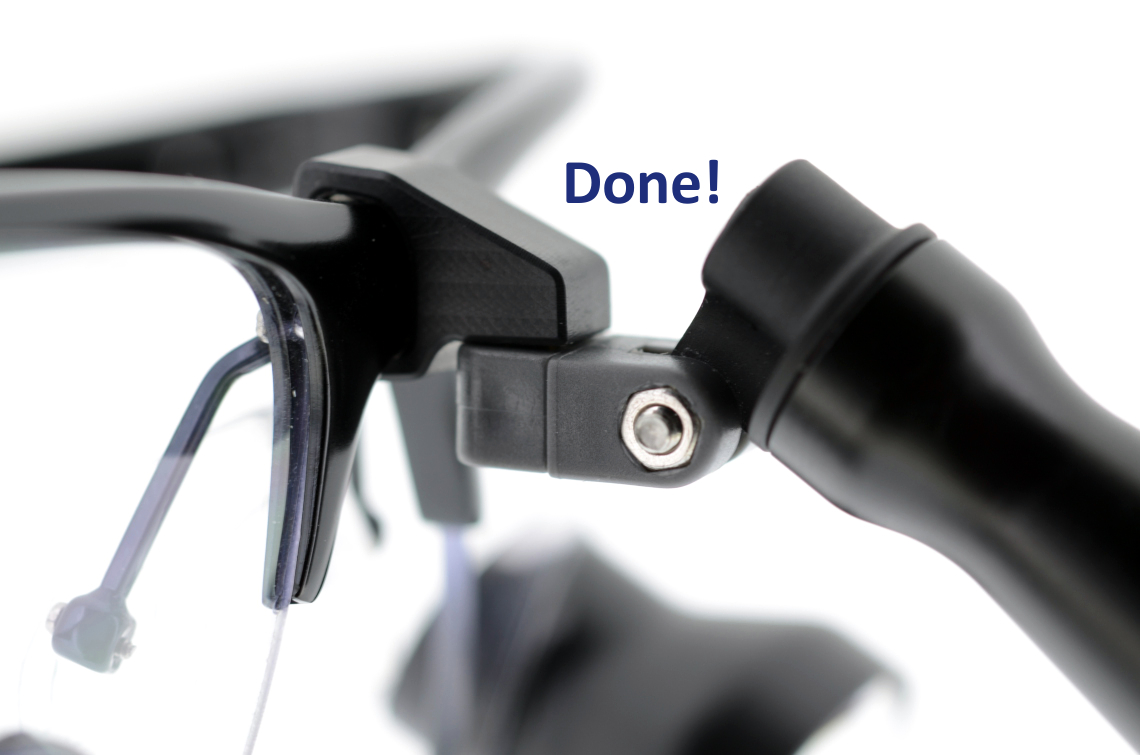

  • Done!
