Ergo Max Ti Vario 2 Loupes

When precision defines your work, the next-generation Ergo Max Ti Loupes set a new standard for surgical-level clarity. Now available in 5.0x and 7.5x magnifications, the updated Ergo Max delivers exceptional visual fidelity for specialists who demand accuracy down to the finest detail — from microsurgery to advanced endodontics and restorative dentistry.

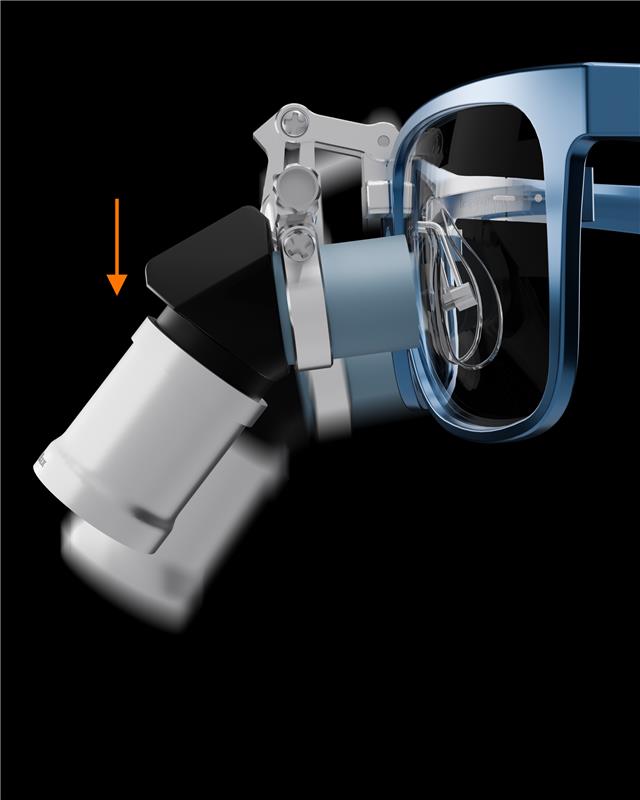

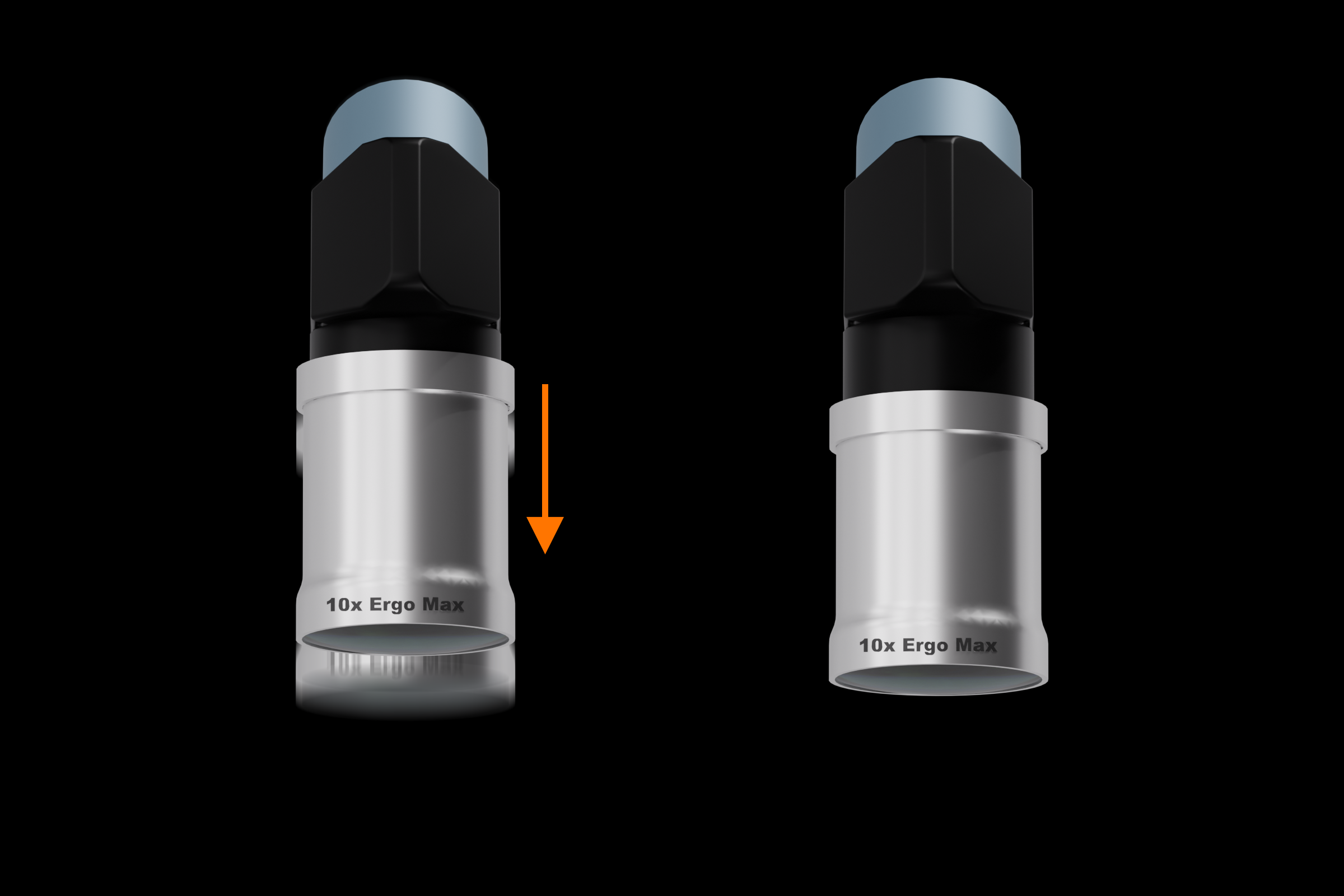

With refined Vario WD™ Technology, the new Ergo Max Ti offers enhanced depth of field and an expanded adjustable working distance, ensuring effortless focus and flexibility across every procedure. Despite its increased optical power, it maintains one of the widest fields of view in its class, minimizing the need for repositioning and supporting seamless, uninterrupted workflow.

Engineered for balance and endurance, the redesigned optical housing optimizes weight distribution for all-day comfort and stability. Each pair is handcrafted in the USA using upgraded materials, precision-ground optics, and advanced coatings — all to deliver superior clarity, ergonomic performance, and lasting durability.

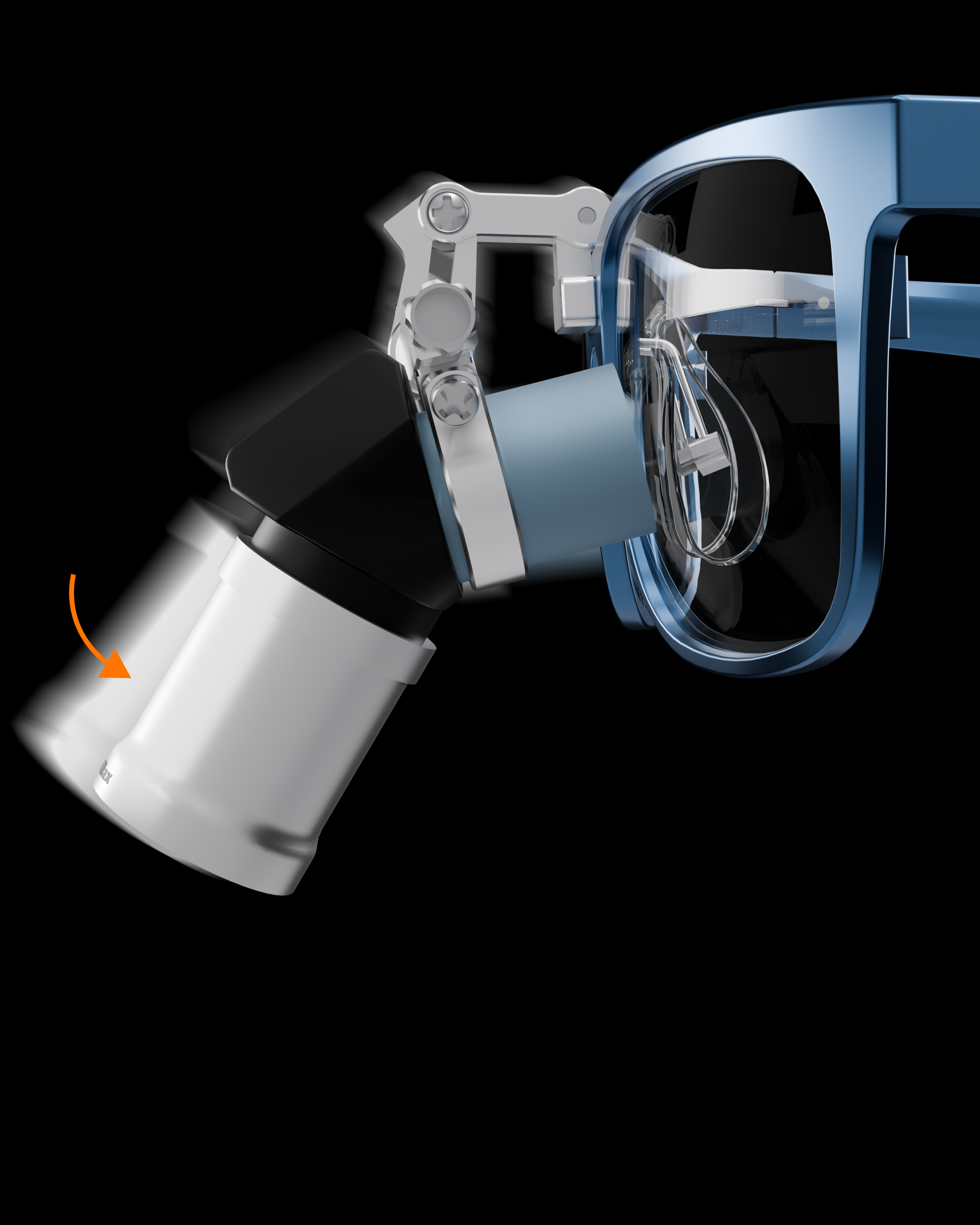

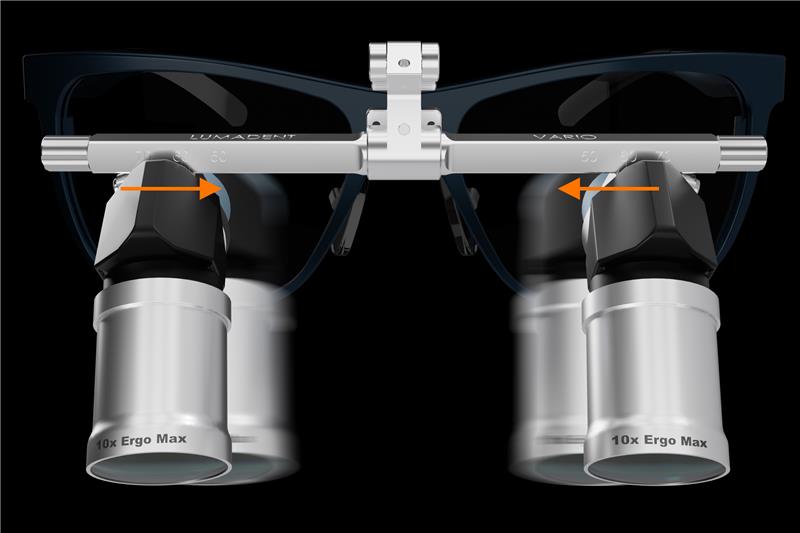

The Ergo Max Ti Vario 2 version takes adaptability even further with adjustable IPD and declination angle, powered by advanced Vario ™ Technology. It offers seamless focus transitions and unparalleled flexibility, providing clinicians with total control and comfort throughout every procedure.

2.5x Magnification

• Field of View at 21": 190mm (7.5")
• Depth of Field at 21": 100mm (3.9")
• Vario WD: Yes
• Carbon 3 Petite Frame: 76g
• Classic Frame: 89g

5.0x Magnification

• Field of View at 21": 100mm (3.9")
• Depth of Field at 21": 80mm (3.1")
• Vario WD: Yes
• Carbon 3 Petite Frame: 78g
• Classic Frame: 91g

7.5x Magnification

• Field of View at 21": 70mm (2.8")
• Depth of Field at 21": 60mm (2.4")
• Vario WD: Yes
• Carbon 3 Petite Frame: 79g
• Classic Frame: 92g

Classic Frame

• Weight: 32g
• Rx Ready: Yes
• Measurement: 56口17-132
• Material: Anodized Aluminum

Classic Petite Frame

• Weight: 30g
• Rx Ready: Yes
• Measurement: 54口15-132
• Material: Anodized Aluminum

Argon 2 Frame

• Weight: 30g
• Rx Ready: Limited
• Measurement: 70口17-125
• Material: Anodized Aluminum

ClariTi 2 Frame

• Weight: 25g
• Rx Ready: Yes
• Measurement: 52口19-140
• Material: Titanium

InfiniTi 2 Frame

• Weight: 25g
• Rx Ready: Yes
• Measurement: 54口18-140
• Material: Titanium

Carbon 3 Petite Frame

• Weight: 20g
• Rx Ready: Yes
• Measurement: 52口16-135
• Material: Carbon Fiber front + Titanium arm

Carbon 3 Medium Frame

• Weight: 20g
• Rx Ready: Yes
• Measurement: 54口18-135
• Material: Carbon Fiber front + Titanium arm

SporTi2 Petite Frame

• Weight: 23g
• Rx Ready: Yes
• Measurement: 62口22-122
• Material: Anodized Aluminum

SporTi2 XL Frame

• Weight: 26g
• Rx Ready: Yes
• Measurement: 71口22-122
• Material: Anodized Aluminum

Can the Ergo Max loupes replace a surgical microscope for procedures like neurosurgery or ophthalmology?

While the Ergo Max TTL Loupes offer high magnification options up to 10.0x and a wide field of view, they are designed to complement, not replace, surgical microscopes. For certain procedures requiring extreme magnification and depth perception, a surgical microscope remains essential. However, the Ergo Max loupes provide enhanced visualization and ergonomics for many dental and surgical applications, reducing the need for constant microscope use.

Why are the options for Ergo Max frames so limited?

As we prioritize both a wide field of view and high magnification in the Ergo Max line of loupes, only the most durable and stable of frames are recommended. Our other or 3rd party frames would leave the risk of accidents high.

How should I clean my loupes?

It is recommended to clean the lenses with a microfiber cloth and lens-safe cleaning solution, avoiding abrasive materials or alcoholic ingredients that could damage the coatings. We recommend Optim-1 cleaning wipes.

• Ergonomic Loupes
• Swappable Nose Piece
• Combo Case
• Side Shields
• Strap
• Cleaning Cloth
• Screw Driver

• User Manual
• Specification Sheet
