Ergo Air Ti Vario 2 Loupes

LumaDent’s Ergo Air Ti Vario 2 Loupes deliver surgical-grade clarity with ergonomic, high-precision magnification. Available in 4x and 5x, these ultra-high magnification loupes feature the advanced Vario 2 system, which offers full adjustability of IPD, working distance, height, and declination angle for a truly customized fit.

Engineered for balance and comfort during long procedures, the Ergo Air Ti Vario 2 provides the widest field of view in its class. It is ideal for specialists who demand exceptional performance without sacrificing ergonomics.

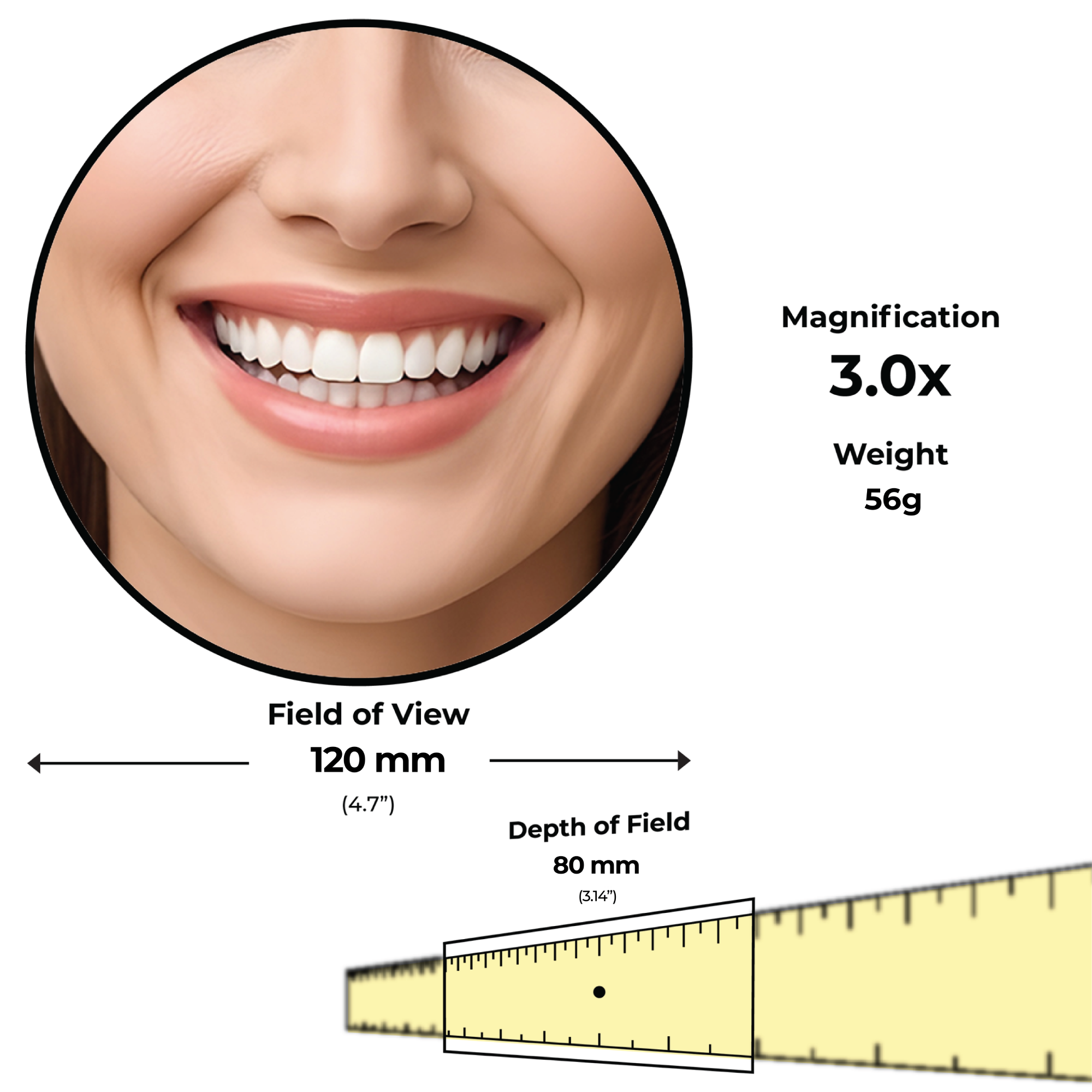

3.0x Magnification

• Field of View at 21": 120mm (4.7")
• Depth of Field at 21": 80mm (3.14")
• Vario WD: Yes
• Carbon 3 Petite Frame: 56g
• Classic Frame: 69g

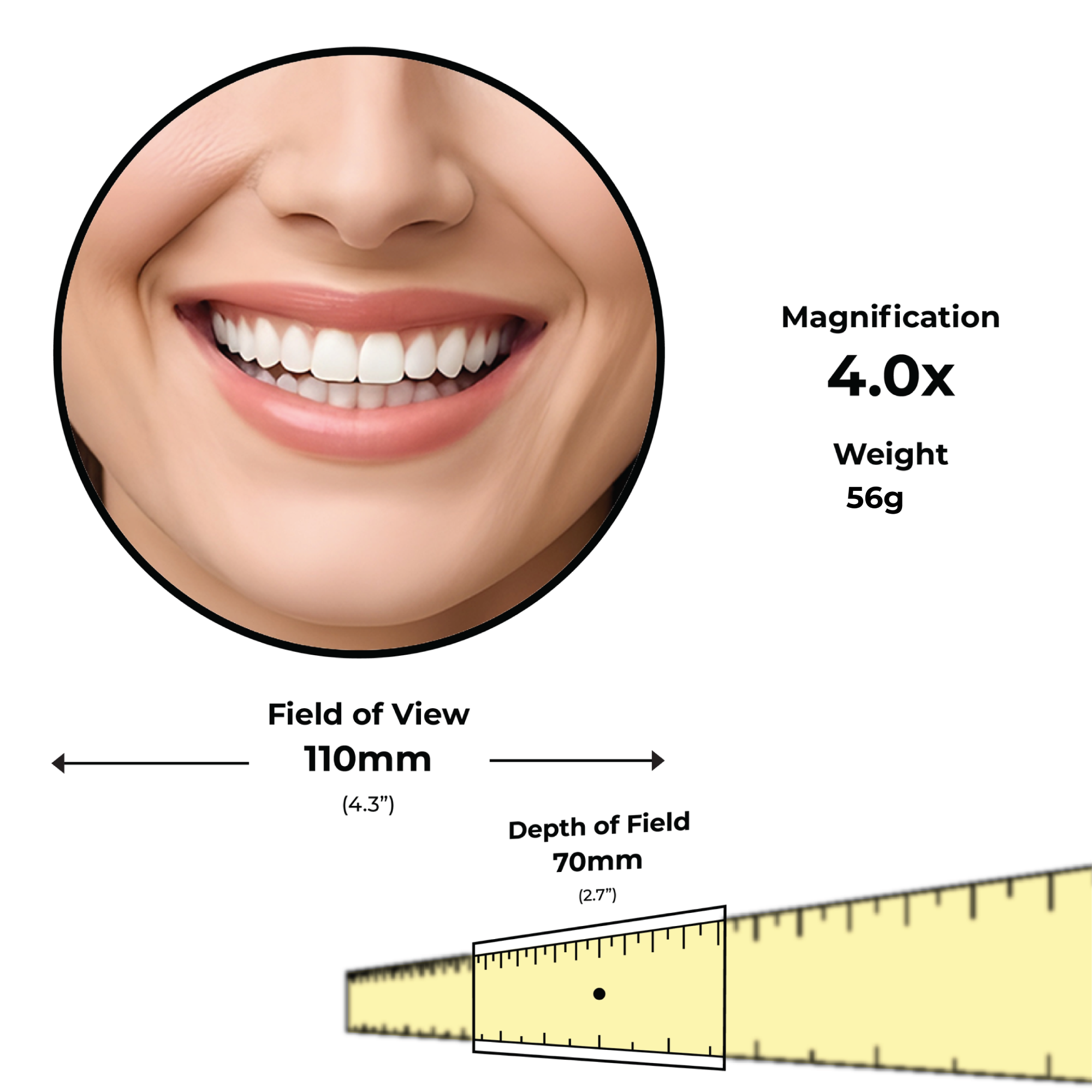

4.0x Magnification

• Field of View at 21": 110mm (4.3")
• Depth of Field at 21": 70mm (2.7")
• Vario WD: Yes
• Carbon 3 Petite Frame: 56g
• Classic Frame: 69g

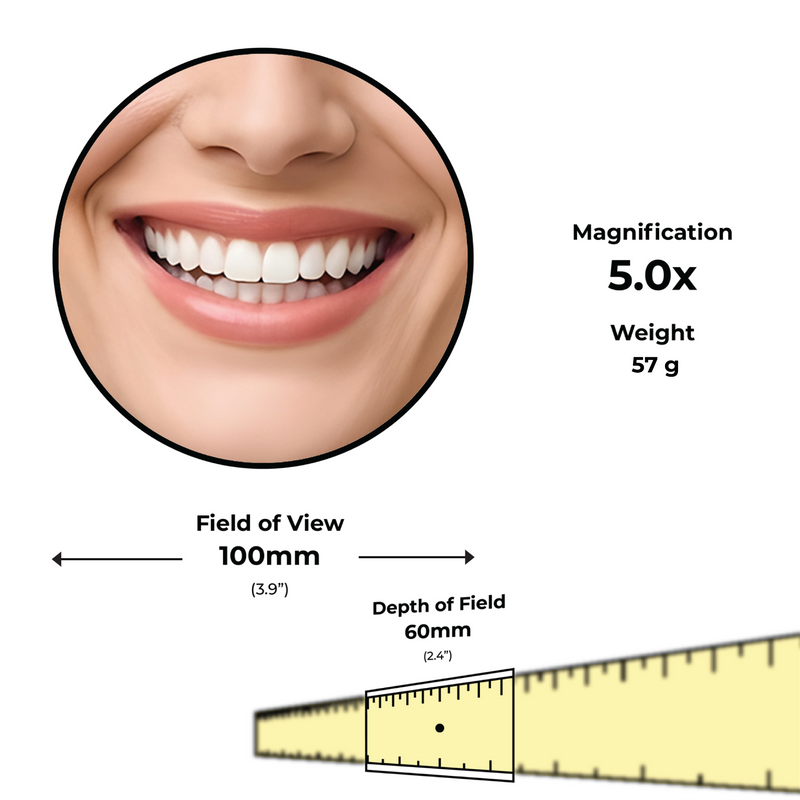

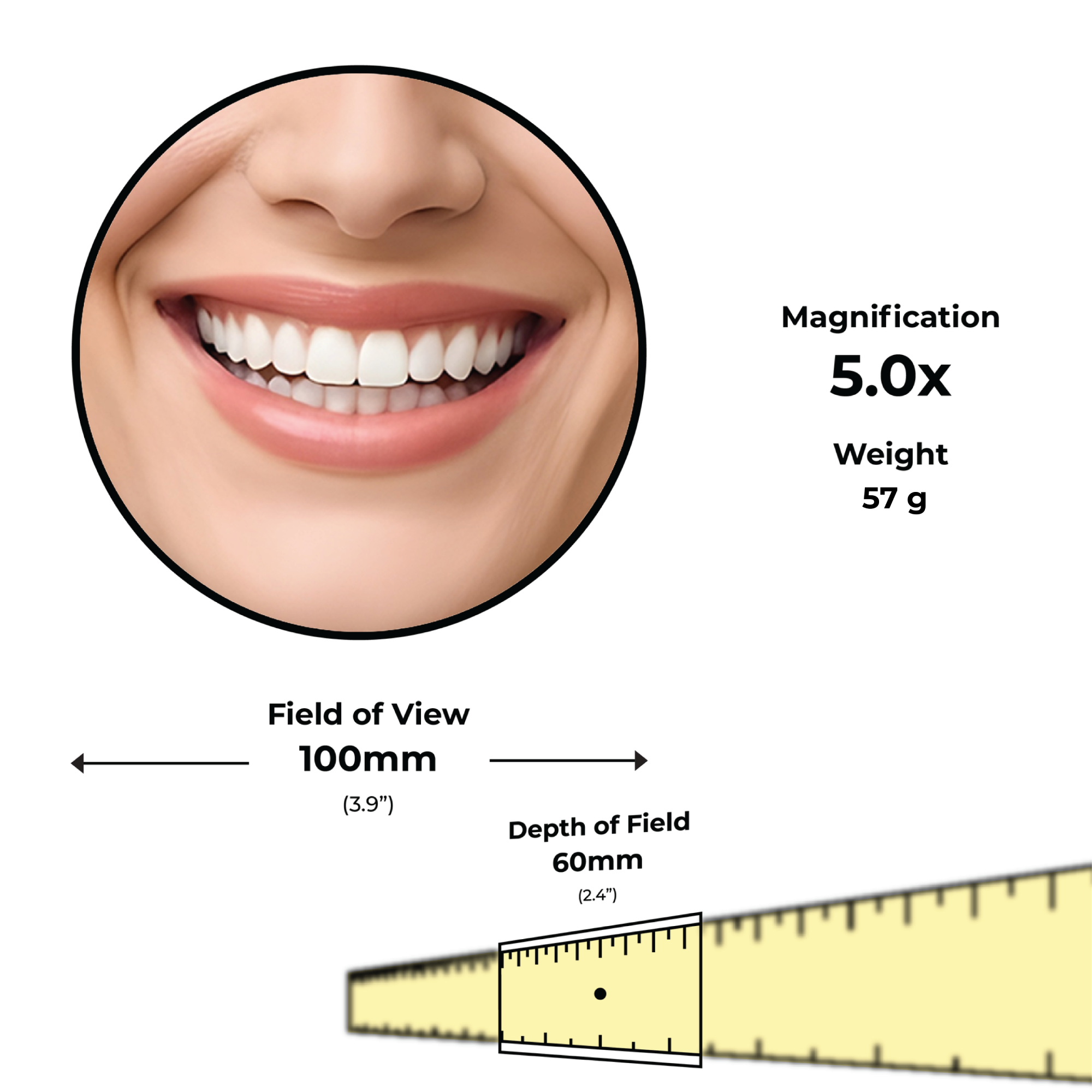

5.0x Magnification

• Field of View at 21": 100mm (3.9")
• Depth of Field at 21": 60mm (2.4")
• Vario WD: Yes
• Carbon 3 Petite Frame: 57g
• Classic Frame: 70g

Classic Frame

• Weight: 32g
• Rx Ready: Yes
• Measurement: 56口17-132
• Material: Anodized Aluminum

Classic Petite Frame

• Weight: 30g
• Rx Ready: Yes
• Measurement: 54口15-132
• Material: Anodized Aluminum

Argon 2 Frame

• Weight: 30g
• Rx Ready: Limited
• Measurement: 70口17-125
• Material: Anodized Aluminum

ClariTi 2 Frame

• Weight: 25g
• Rx Ready: Yes
• Measurement: 52口19-140
• Material: Titanium

InfiniTi 2 Frame

• Weight: 25g
• Rx Ready: Yes
• Measurement: 54口18-140
• Material: Titanium

Carbon 3 Petite Frame

• Weight: 20g
• Rx Ready: Yes
• Measurement: 52口16-135
• Material: Carbon Fiber front + Titanium arm

Carbon 3 Medium Frame

• Weight: 20g
• Rx Ready: Yes
• Measurement: 54口18-135
• Material: Carbon Fiber front + Titanium arm

SporTi2 Petite Frame

• Weight: 23g
• Rx Ready: Yes
• Measurement: 62口22-122
• Material: Anodized Aluminum

SporTi2 XL Frame

• Weight: 26g
• Rx Ready: Yes
• Measurement: 71口22-122
• Material: Anodized Aluminum

What if my headlight brand isn't listed?

If you don’t see your headlight brand as an option, please contact LumaDent.

How does the mount work?

If your LumaDent loupes has two posts:

• Slide the mount through the posts
• Once secured, slide your headlight onto the mount

If your loupes do not have 2 posts:

• Directly screw the mount onto the frame
• Slide your headlight onto the mount

• Loupes
• Swappable Nose Piece
• Combo Case
• Side Shields
• Strap
• Cleaning Cloth
• Screw Driver

• Specification Sheet
