Ergo Air TTL Loupes - 4th Gen - Student Offer
The next generation of the world’s lightest ergonomic loupes is here.

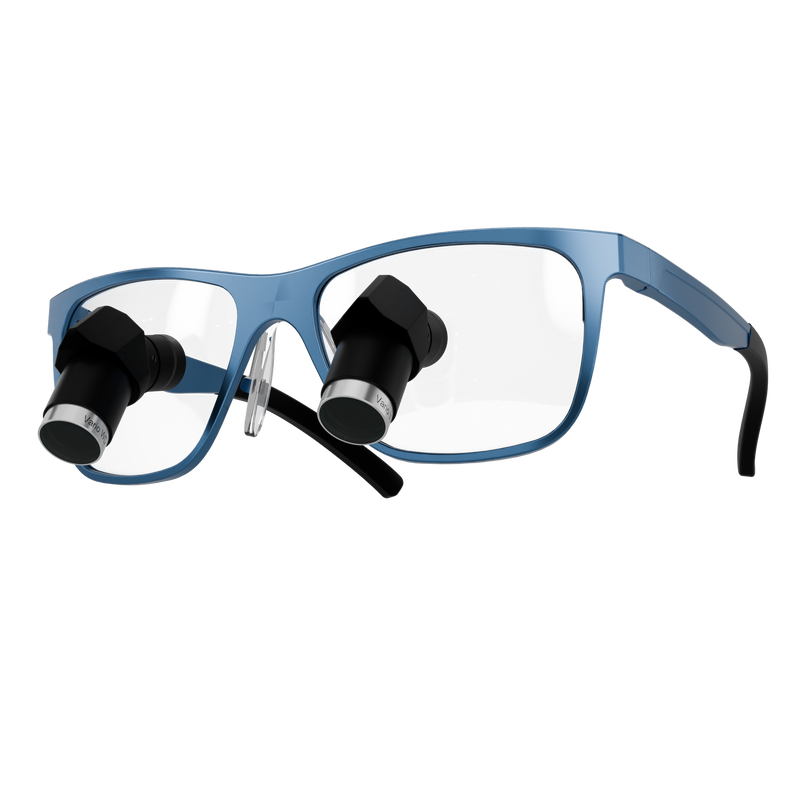

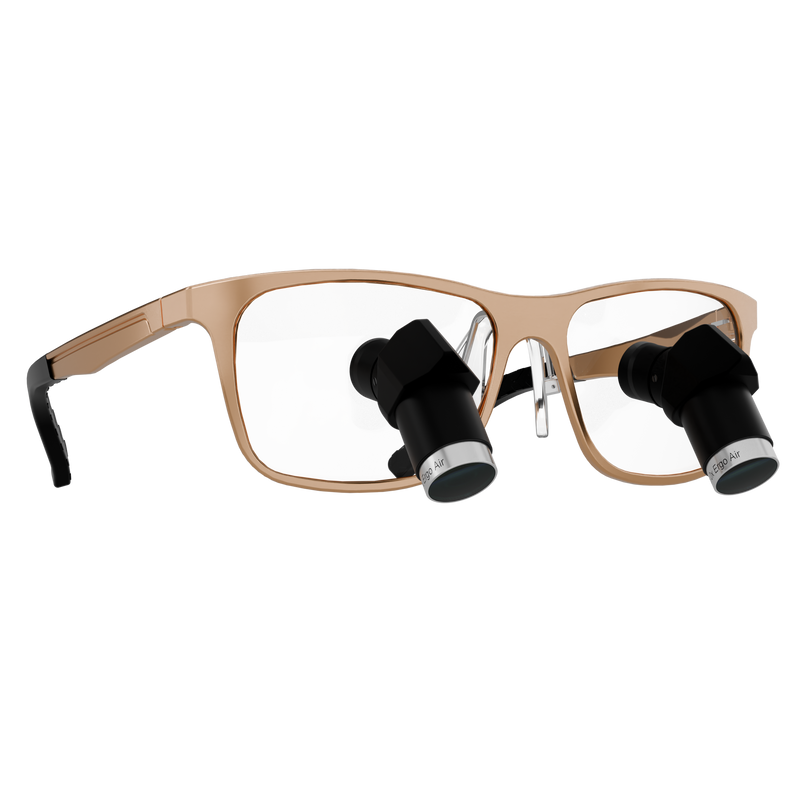

LumaDent’s 4th Gen Ergo Air TTL Loupes are engineered to reduce strain, enhance optical clarity, and expand your peripheral view, all in an ultra-light, hand-crafted design.
The next generation of the world’s lightest ergonomic loupes is here. LumaDent’s 4th Gen Ergo Air TTL Loupes are engineered to reduce strain, enhance optical clarity, and expand your peripheral view, all in an ultra-light, hand-crafted design. With fully adjustable ergonomic angles and edge-to-edge sharpness, they’re built to support better posture, greater precision, and long-term comfort. From first fit to final procedure, feel the difference in every moment of your practice.
Details
Discover the 4th Generation of LumaDent Ergo Air TTL Loupes, the lightest ergonomic loupes available, designed for clinicians who prioritize comfort without sacrificing performance. At a weight so minimal, you’ll forget you’re even wearing them, allowing you to focus entirely on your procedure, not your equipment.
Crafted to reduce fatigue during long hours of use, the Ergo Air combines custom-made feather-light construction with cutting-edge optics for a seamless balance of comfort and clarity. These loupes are the ideal choice for professionals who need to maintain natural posture and avoid neck and back strain, even during extended sessions.
Despite their weightlessness, Ergo Air loupes provide a wide field of view and superior depth of field, ensuring crisp focus and enhanced visibility from start to finish. The Vario WD™ Technology allows for effortless adjustments across different procedures, providing total flexibility while maintaining all-day comfort.
Tech Specs
Magnification | 3.5x | 5.0x | 6.5x | 8.0x |
---|---|---|---|---|
Field of View at 21" | 90mm (3.5") | 70mm (2.75") | 75mm (3.0") | 65mm (2.5") |
Depth of Field at 21" | 110mm (4.25") | 100mm (4") | 90mm (3.5") | 85mm (3.25") |
Vario WD? | Yes | Yes | Yes | Yes |
Total Weight (Carbon 3 Petite Frame) | 36g | 38g | 48g | 50g |
Total Weight (Classic Frame) | 49g | 51g | 61g | 63g |
Frame Specs
Frame | Weight | Rx Ready? | Measurement | Material |
---|---|---|---|---|
Classic | 32g | Yes | 56口17-132 | Anodized Aluminum |
Classic Petite | 30g | Yes | 54口15-132 | Anodized Aluminum |
Argon 2 | 30g | Limited | 70口17-125 | Anodized Aluminum |
ClariTi 2 | 25g | Yes | 52口19-140 | Titanium |
InfiniTi 2 | 25g | Yes | 54口18-140 | Titanium |
Carbon 3 Petite | 20g | Yes | 52口16-135 | Carbon Fiber front + Titanium arm |
Carbon 3 Medium | 20g | Yes | 54口18-135 | Carbon Fiber front + Titanium arm |
Carbon 3 XL | 23g | Yes | 58口19-140 | Carbon Fiber front + Titanium arm |
SporTi2 Petite | 23g | Coming Soon | 62口22-122 | Anodized Aluminum |
SporTi2 Medium | 25g | Coming Soon | 68口22-122 | Anodized Aluminum |
SporTi2 XL | 26g | Coming Soon | 71口22-122 | Anodized Aluminum |
FAQs
How do ergonomic loupes improve posture?
The optical pathway refracts downwards, allowing users to look forwards while seeing downwards. As both head tilt and neck flexion are minimized, users can easily adopt a natural, ergonomic alignment of neck and back throughout long procedures.
What is the difference in weight between Ergo Air 4th Gen and other models like ErgoPrism?
The Ergo Air 4th Gen oculars are, on average, 50% lighter than the ErgoPrism and other standard ergonomic loupes on the market. For some models, even lighter than 50%!
What is the difference between the Ergo Air 4th Gen compared to the 3rd Gen?
The Ergo Air 4th Gen model takes lightweight loupes to another level being 30% lighter than the 3rd Gen at 3.5x magnification. It also offers a wider range of magnification options with 6.5x and 8.0x now available.
Will my working distance change when I switch to ergonomic loupes?
Now that you won't need to bend your neck or hunch your back to view your patient, your head will typically be a few inches further from your working area. This results in a small, but functional increase in your working distance.
How should I clean my loupes?
It is recommended to clean the lenses with a microfiber cloth and lens-safe cleaning solution, avoiding abrasive materials or alcoholic ingredients that could damage the coatings. We recommend Optim-1 cleaning wipes.
What's Included
- Ergonomic Loupes
- Swappable Nose Piece
- Combo Case
- Side Shields
- Strap
- Cleaning Cloth
- Screw Driver
Resources
- User Manual
- Spec Sheet
So Light. You'll Forget You're Wearing Them.
The lightest ergonomic loupes in the world. With the lighest ocular weighing just 8.2g, the Ergo Air 4th Gen redefines weightlessness.

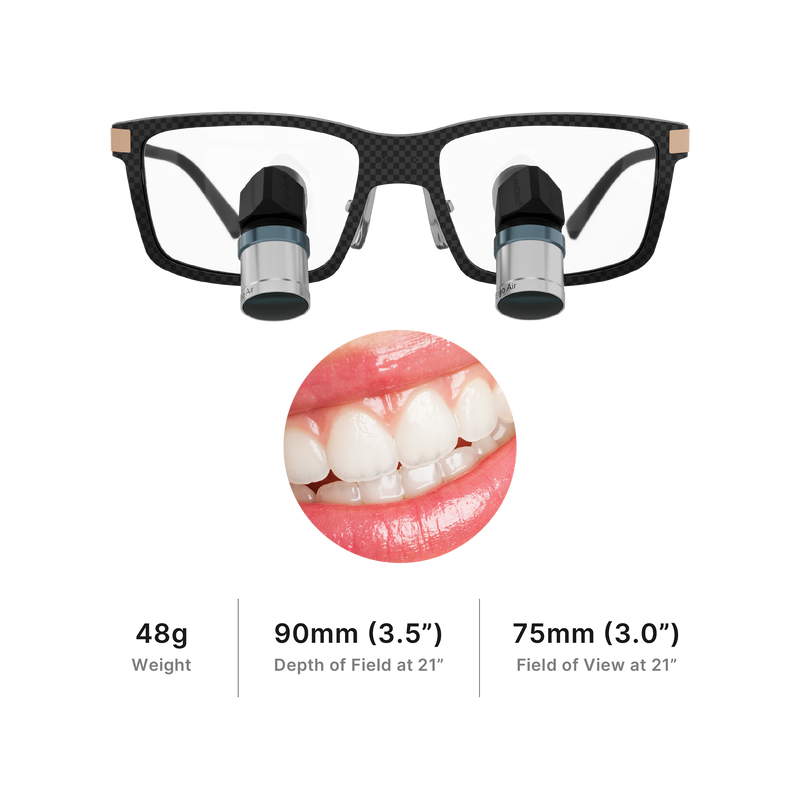

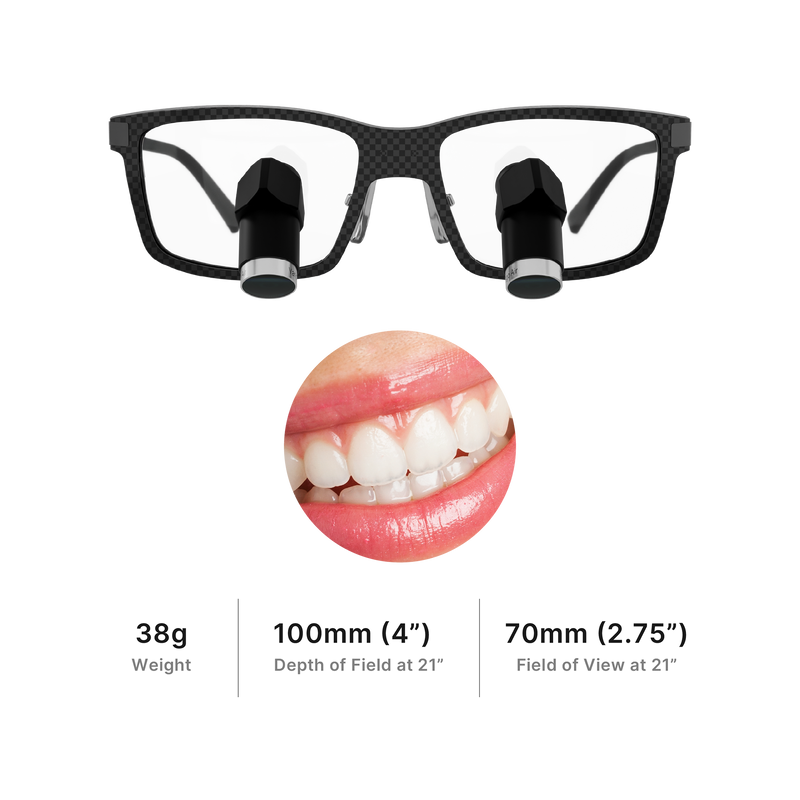

Which Magnification Is Right for You?
